ET120M Digital Oscilloscope Professional 500MS/s 120MHz One Key Auto Laboratory Electrical Repair Portable Storage ,Professional Designed

<p>Specification: </p><p>Display: 320x240 LCD screen</p><p>Display area: 50mm x 40mm</p><p>Backlight: White, brightness adjustable</p><p>Impedance: x1: 1M / x10: 10M</p><p>Battery: 18650 lithium battery</p><p>Auto shutdown: No operation for 15 minutes</p><p>Storage: 2500 DSO waveforms</p><p>Size: 124 X 80 X 35mm</p><p>Use conditions: 0C~ +40; &lt; 75%RH</p><p>Storoge conditions: -10C~ +60; &lt; 90%RH</p><p>Analog bandwidth: 120MHz</p><p>Maximum real-time sampling rate:500MSps</p><p>Vertical resolution: 8 bits</p><p>Vertical accuracy: ±(5%+ 0.2div)</p><p>Auto zero reference: During DC meosurement</p><p>Trigger level: ±3.8div (0. 1div per step)</p><p>Trigger position: ± 6div (0. 1div per step)</p><p>Cursor function: V,t, 1 /t</p><p>Nonlinearity:±1 bits</p><p>Coupling method:DC/AC</p><p>DivisionVerical: ±3.8 Horizontal:12</p><p>Time base range:6ns/div ~ 50s/div</p><p>Time base accuracy:±(0.01%+0.1div)</p><p>Scan mode:Auto/Single/Normal</p><p>Trigger slope:Rising / Falling</p><p>Record length:12div</p><p>Auto configuration:Automatically set time base and vertical amplitude</p><p></p><p>Digital oscilloscope, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

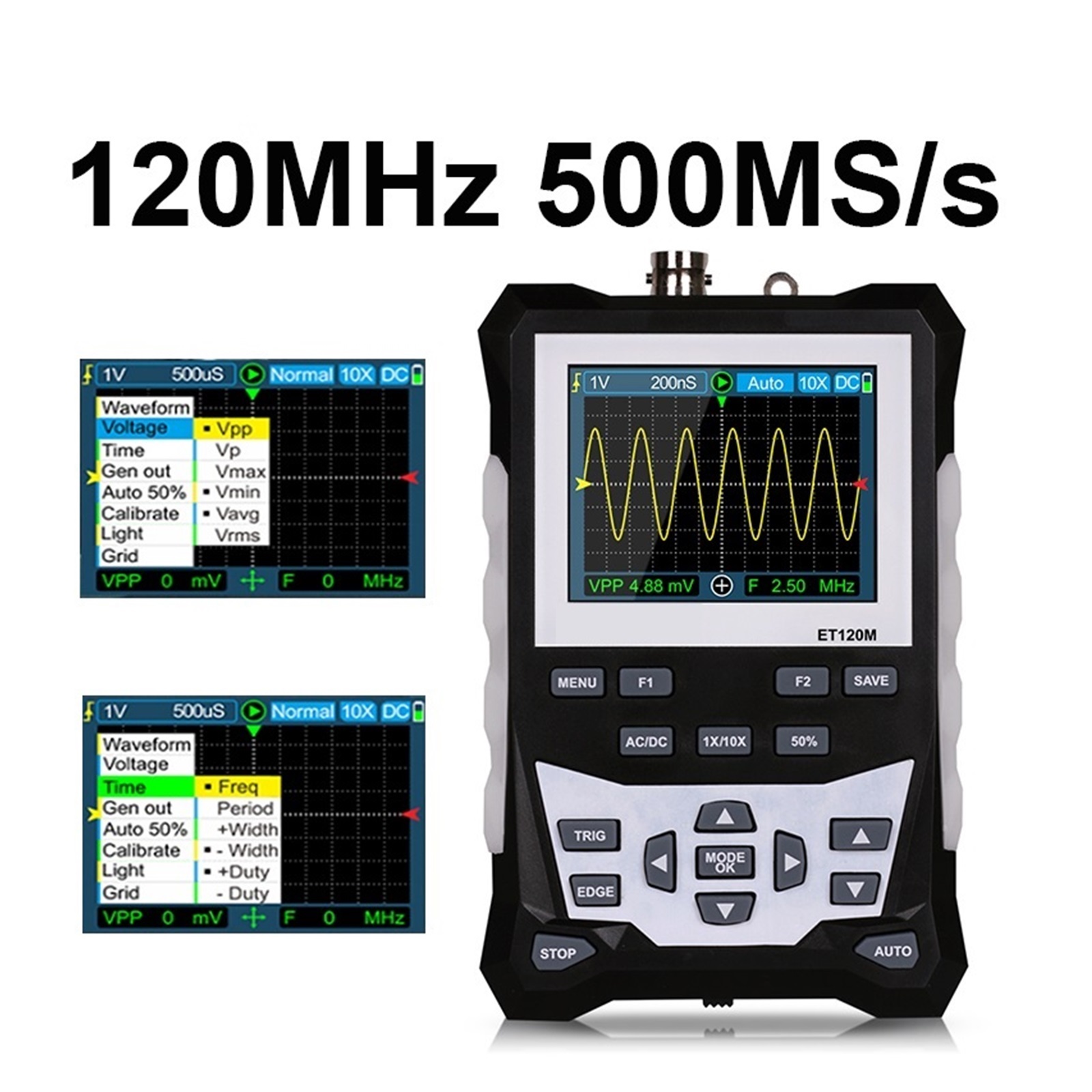

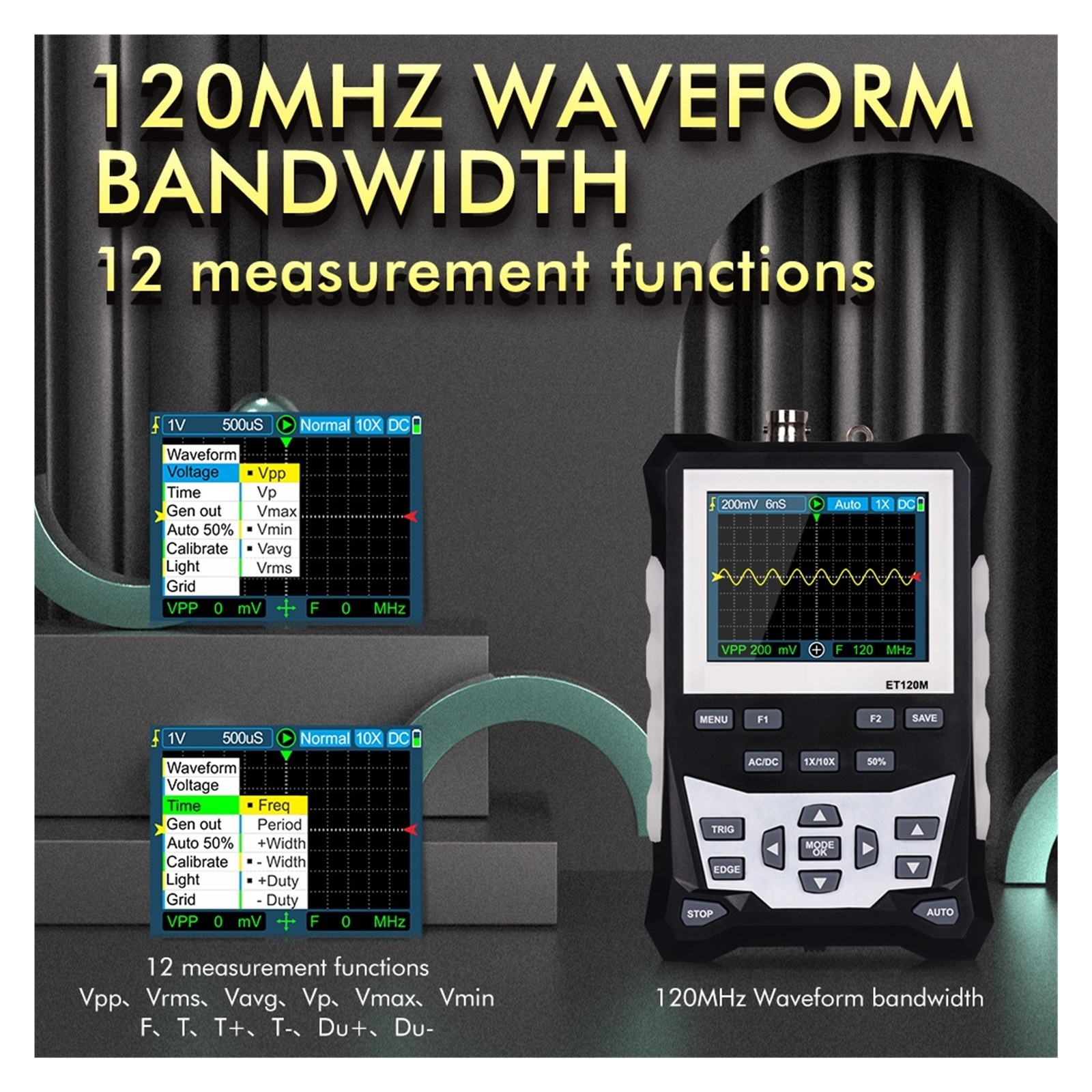

• - 120MHz analog bandwidth and 500MS/s sampling rateoscilloscope with 2.4 inches 320 * 240clear color screen

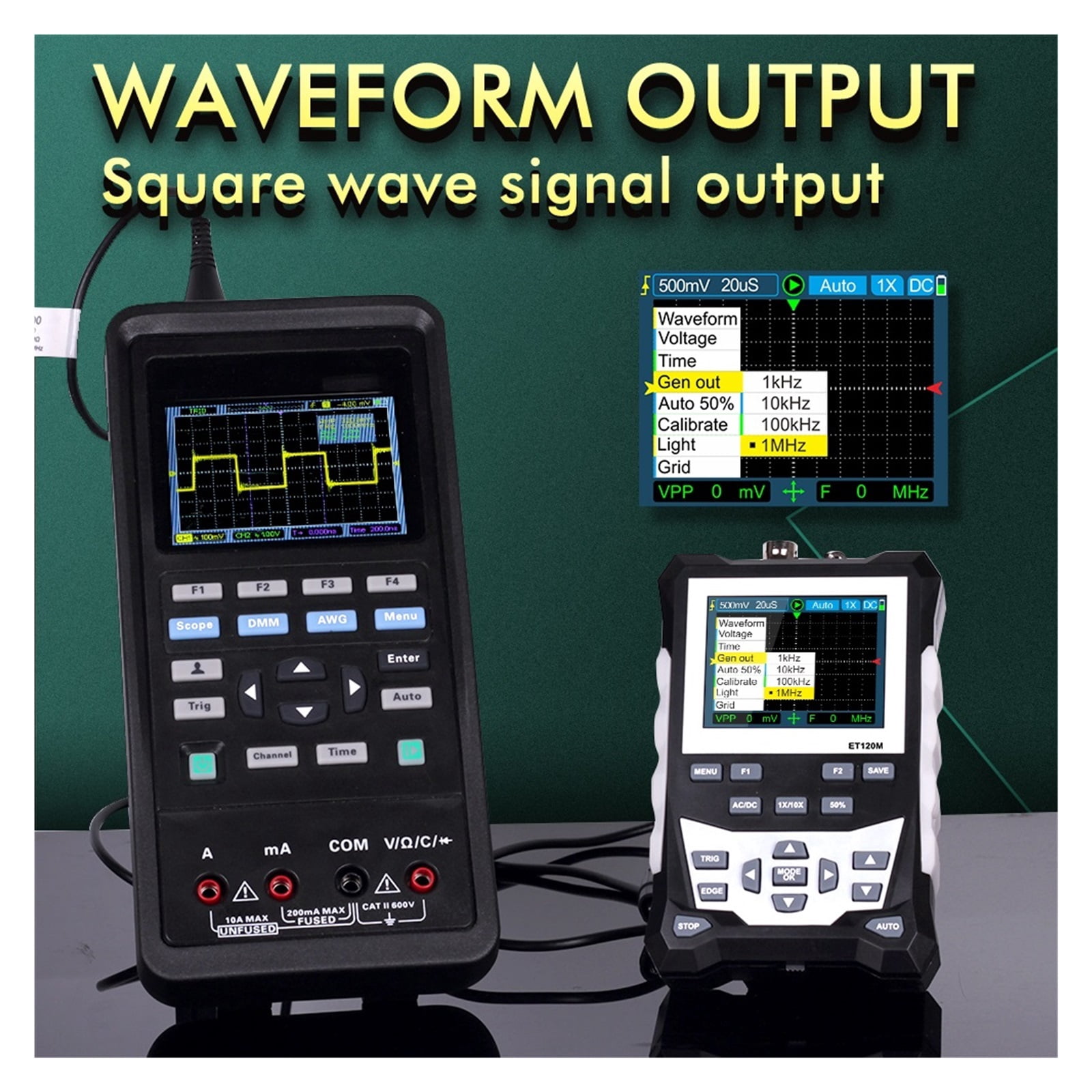

• - Square wave signal output:1kHz,10KHz,100KHz,1MHz 4 speeds of square wave signal output
• - Waveform Parameters Adjustable:time base, amplitude,trigger slopeand vertical sensitivity can be setting
• - Three scan modes: auto, normal and single. Can store 2500DSOwaveforms, support thumbnail browsing.
• - Compact and portable appearance, with silicone protective cover ,strong and , built-in rechargeable lithium battery, can be used continuously for 6 hours,suitable for outdoor working
